Fire Protection Butterfly Valve–Efficient Shut-off and Precise Control

Fire protection butterfly valves employ a centric design, with the main valve structure composed of the valve body, valve disc, valve seat, valve stem, and transmission operating mechanism. The valve seat features a detachable structure. Transmission mechanisms are available in handle type, worm gear type, and signal type. These valves are suitable for use in fire sprinkler system pipelines to throttle or regulate flow. The signal valve includes a signal switch positioned at the worm gear's open/close location, making it suitable for automatic fire sprinkler system pipelines.

Fire Protection Valve PDF

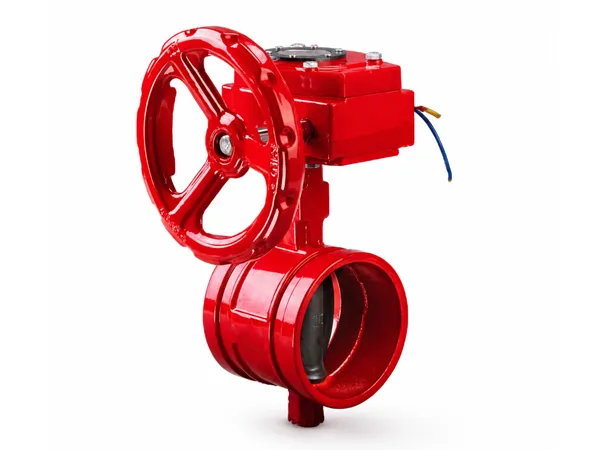

Fire protection butterfly valve on a white background

Features

The valve seat features a detachable design for convenient on-site maintenance and employs a full flow passage design to prevent blockage by impurities. The integrated "O"-shaped sealing lines at both ends ensure reliable sealing without the need for additional gaskets during pipe installation, and different materials can be selected based on specific application requirements.
The shaft pin uses a U.S. patented withdrawal pin design that tightly connects the valve disc to the valve shaft, preventing loosening without compromising shaft strength, and provides excellent interchangeability.
The operating mechanism is flexible and can be equipped with different rotary devices such as a handle or worm gear per customer requirements; the worm gear can also be fitted with a signal device.

Type

Handle-Type

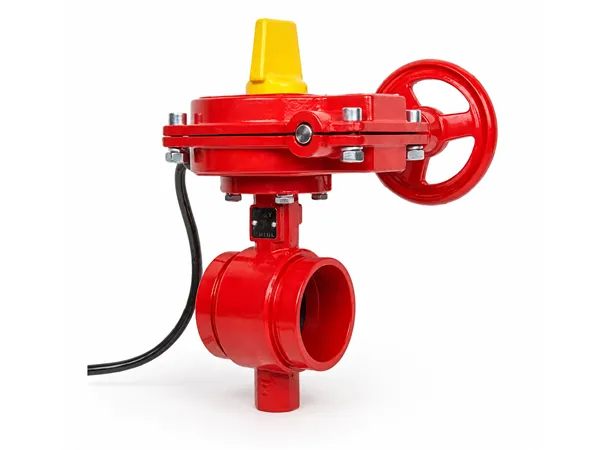

Worm Gear-Type

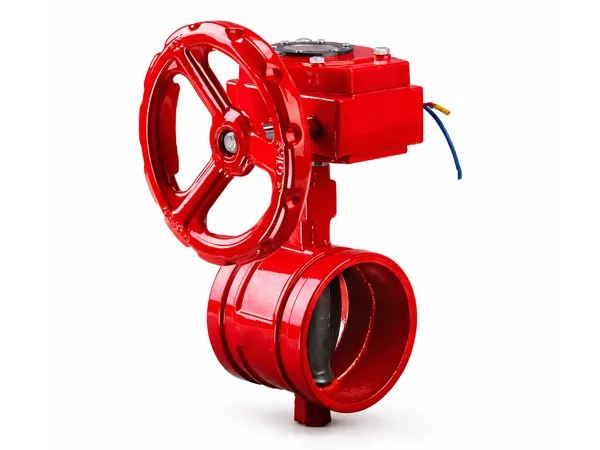

Signal fire protection butterfly valve with white background

Signal-Type

Parameters

Table 1: Fire Protection Butterfly Valve Parameters
Nominal Diameter	Actuation Method	Working Pressure	Working Temperature	Seal Material	Seat Material	Disc Material	Body Material	Medium	Applications	Connection Standard
DN50 to DN300	Pneumatic Electric Manual Worm Gear	1.0Mpa 1.6Mpa 2.5Mpa	-10℃ to 80℃	PTFE EPDM	EPDM PTFE	Powder-Coated Ductile Iron Stainless Steel	Ductile Iron Cast Steel	Water Oil Gas	Drainage Building Fire Protection	Chinese Standard: PN10/PN16 American Standard: ANSI Class 150 German Standard: DIN PN16 Japanese Standard: JIS 10K / 16K

Application

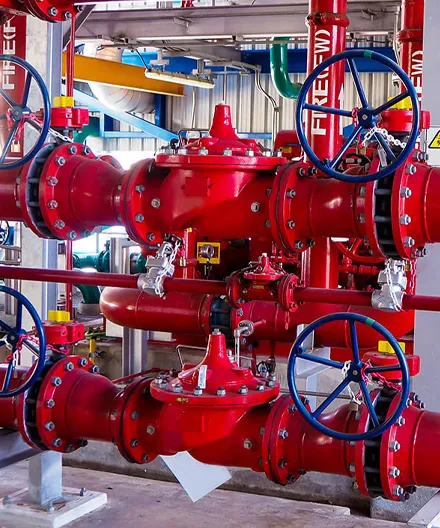

Fire-fighting butterfly valve in the fire pump room

Fire Protection Butterfly Valve
