Vertical Turbine Fire Pumps for Low-Level Water Intake

Vertical Turbine Fire Pumps use a vertical turbine configuration and are suitable for fire-water intake from fire-water tanks, deep wells, and other low-level water sources or locations with restricted suction conditions. The products can be designed in accordance with NFPA 20, UL, FM, EN 12845, CCCF, and other standards, with a flow range of 250–5,000 GPM and a pressure range of 80–300 PSI. The fire pump set can be configured with an electric motor or an air-cooled or water-cooled diesel engine, and NFPA 20-compliant skid-mounted units can be provided. The units offer strong water intake capability, a broad performance range, stable operation, and flexible configuration, and are widely used in large buildings, transportation hubs, petrochemical plants, power plants, terminals, oil depots, warehouses, and industrial and mining enterprises.

Fire Pump PDF

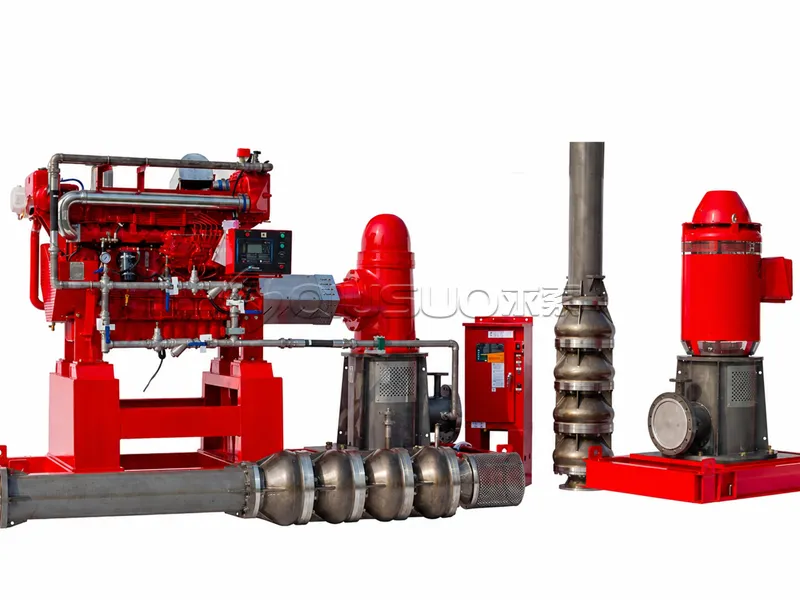

Vertical turbine fire pump on a white background

Technical Specifications

FM – Q: 250 to 5,000 GPM; H: 80 to 300 PSI
UL – Q: 250 to 5,000 GPM; H: 80 to 300 PSI
CCCF – Q: 15 to 300 L/S; H: 0.60 to 2.0 MPa
NFPA 20 – Q: 250 to 5,000 GPM; H: 80 to 300 PSI
Product Design Standards: NFPA 20, UL, FM, EN 12845, CCCF
Product Options: Electric-motor fire pump sets, diesel-engine fire pump sets (air-cooled, water-cooled), NFPA 20 standard skid-mounted units

Features

High Flow and High Pressure: Flow up to 5,000 GPM, pressure up to 300 PSI.
Suitable for Deep-Water Intake: Uses a vertical turbine configuration and is suitable for fire-water tanks, intake wells, and other applications.
Complies with Multiple Standards: Can be designed in accordance with NFPA 20, UL, FM, EN 12845, and CCCF standards.
Flexible Drive Configurations: Electric motors, air-cooled or water-cooled diesel engines are available, with support for NFPA 20 skid-mounted configurations.
Wide Range of Applications: Suitable for buildings, transportation, petrochemicals, power generation, terminals, oil depots, and industrial facilities.
