High-Performance Fire Protection Grooved Coupling Solutions

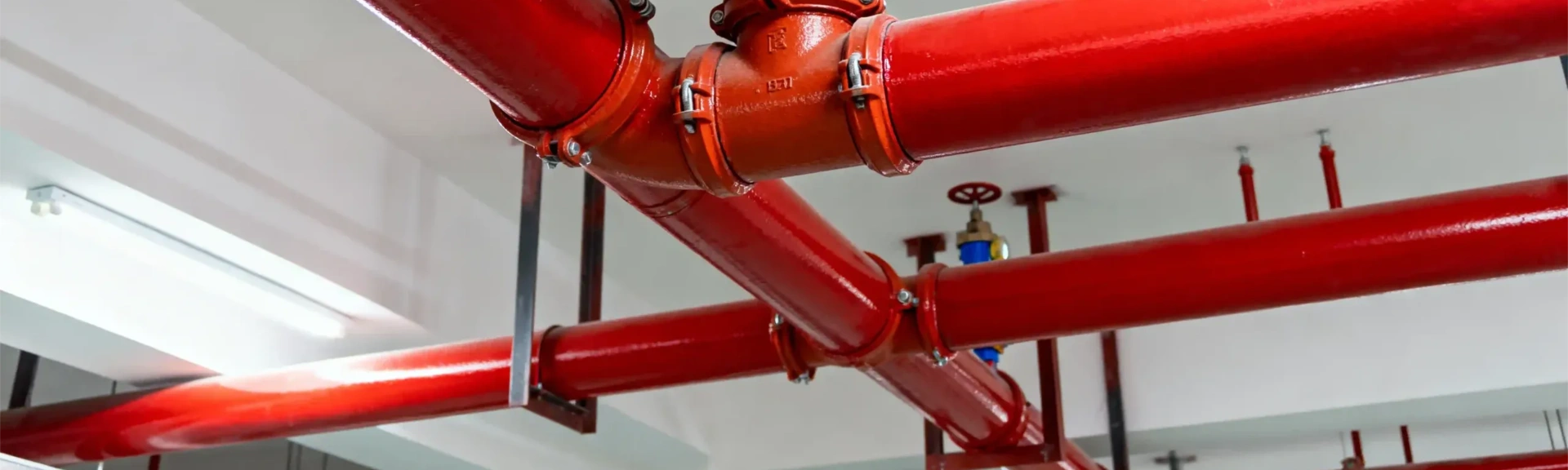

Fire protection grooved couplings provide high-quality piping connections, widely used in fire water supply systems, sprinkler systems, and industrial piping connections.

Manufactured from premium ductile iron materials, our products deliver reliable sealing performance and excellent pressure resistance. Certified with UL and FM approvals, they meet international fire protection system standards and provide safe, efficient, and reliable piping connection solutions for customers worldwide.

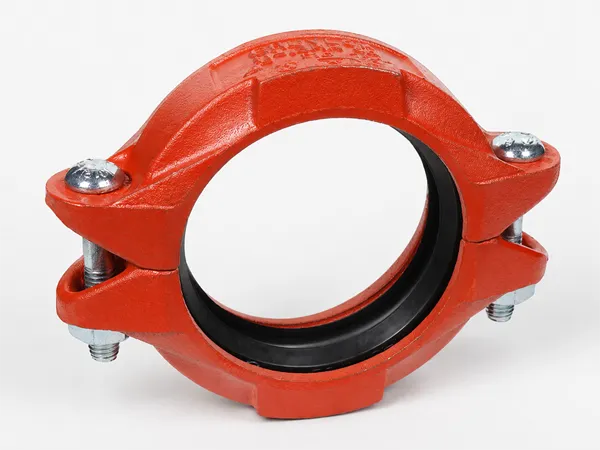

Fire protection grooved coupling on white background
Features

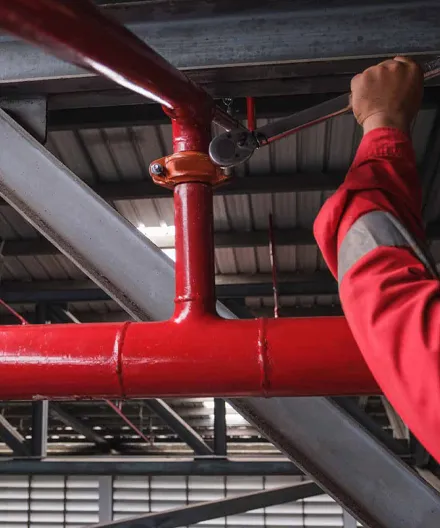

  • Cost-Effective Installation: Quick installation without welding, special training, or complex tools helps reduce labor requirements and overall project costs.
  • Flexible and Rigid Connection Options: Flexible couplings accommodate thermal movement, vibration, and pipe deflection, while rigid couplings provide a strong, fixed connection comparable to welded systems.
  • Reliable Safety Performance: The coupling housing fully engages around the pipe circumference, ensuring secure pipe connection under the rated maximum working pressure.
  • Vibration and Noise Control: The combination of pipe-end clearance and resilient gasket design helps absorb vibration and minimize noise transmission.
  • Simple Maintenance and Replacement: Easy disassembly allows fast access for pipeline inspection, cleaning, repair, and maintenance.
Category
  • XGQT01/XGQT01P
  • XGQT02/XGQT02P
  • XGQT02B

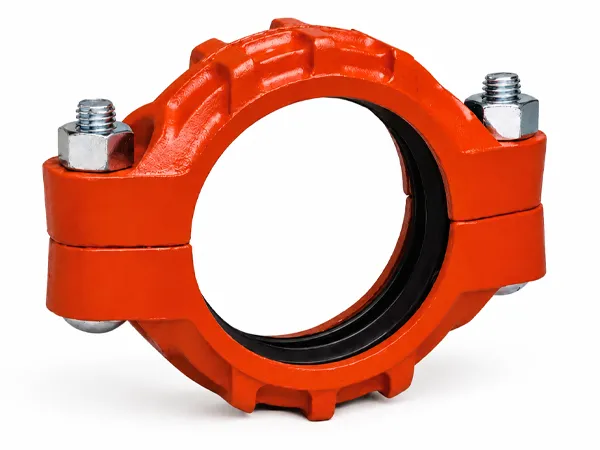

  • XGQT02D

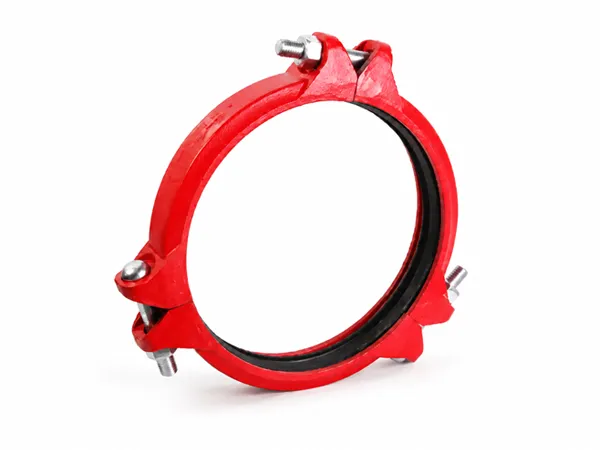

  • XGQT02H
  • XGQT02K
  • XGQT31

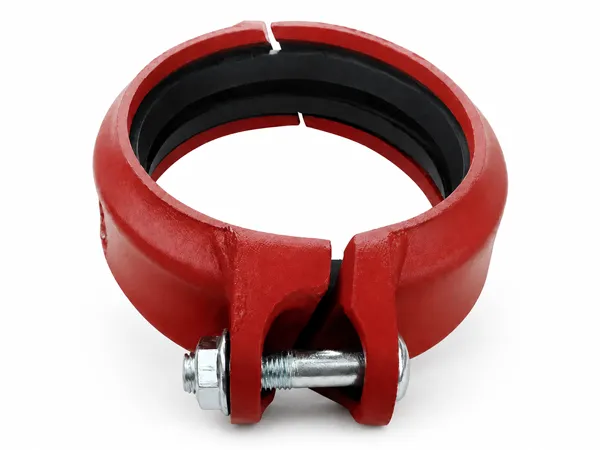

  • XGQT31A

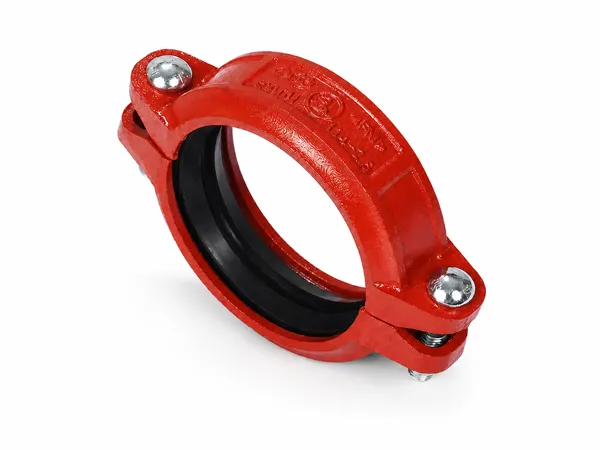

  • XGQT32

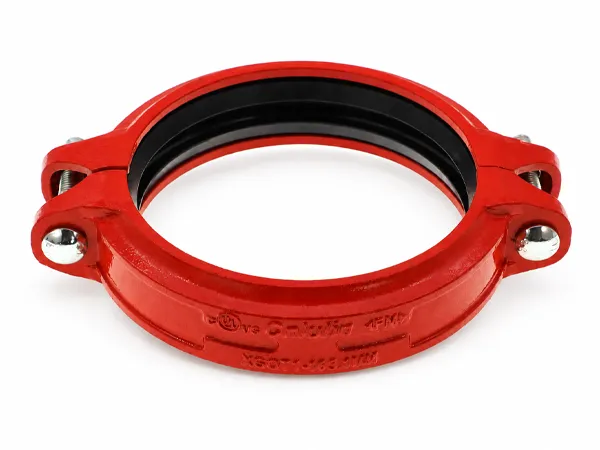

  • XGQT35

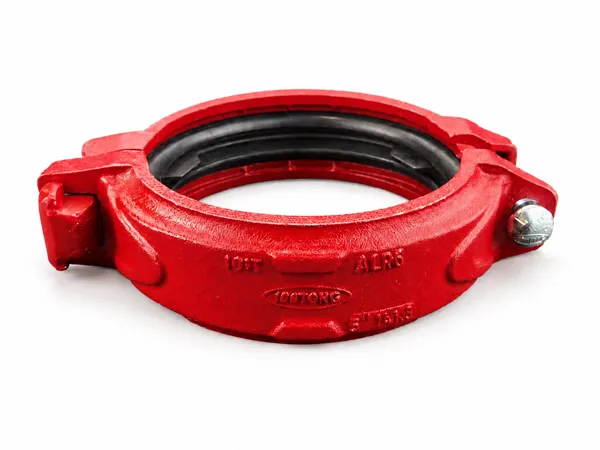

  • 101T

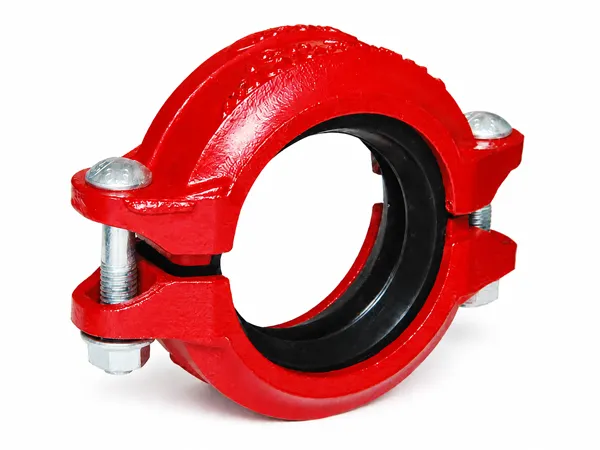

  • H305

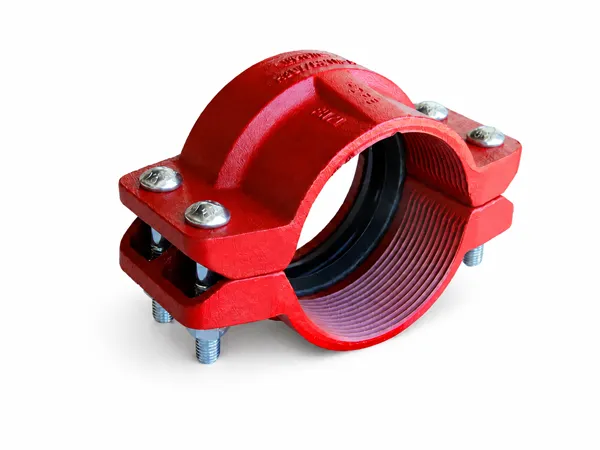

  • H307

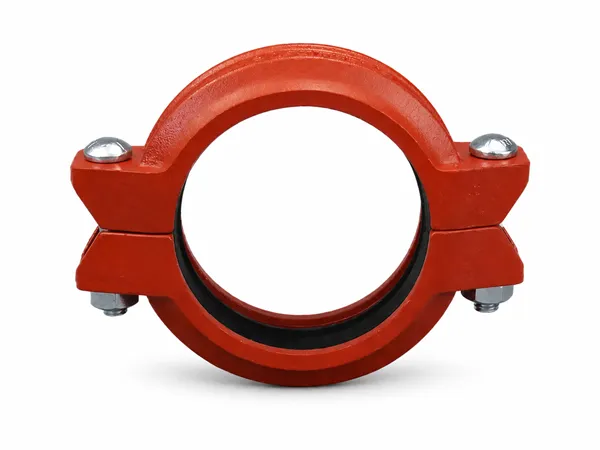

  • KRJ02

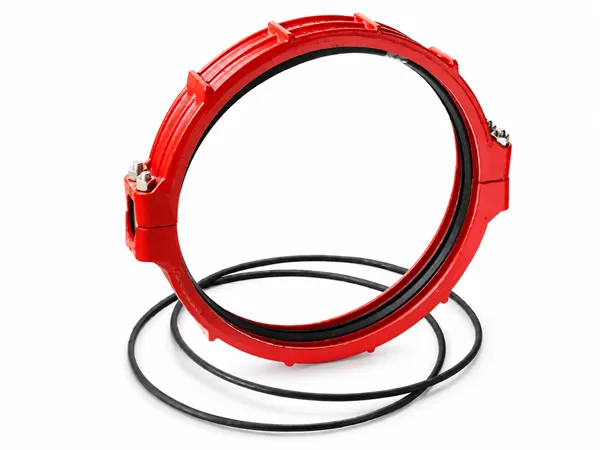

  • XGQT02W

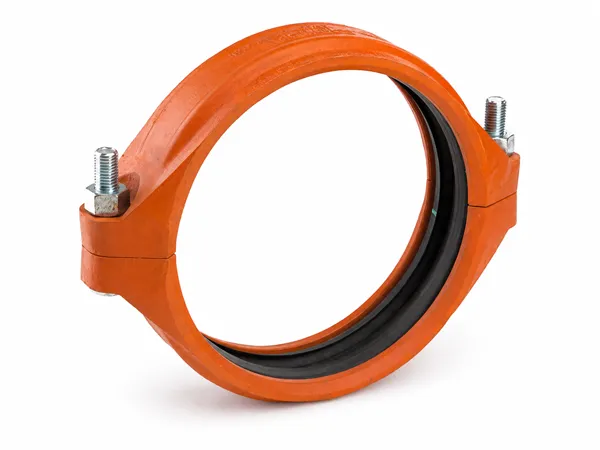

  • XGQT01H
XGQT01/XGQT01P Rigid Coupling
Product Description
  • Type: Ductile cast iron grooved rigid coupling.
  • Applicable Pipes: Suitable for Schedule 10, Schedule 30, Schedule 40, GB/T 3091, and WGalweld 7 specification pipes.
  • Specification Size: 25 mm to 300 mm (1 inch to 12 inches).
  • Certification Standards: Rated pressure complies with UL and FM certification standards.
  • XGQT01 Features: Standard rigid grooved coupling.
  • XGQT01P Features: On the basis of XGQT01, enhanced anti-corrosion spray coating treatment is added, providing better corrosion resistance and making it more suitable for humid, outdoor, and corrosive environments.

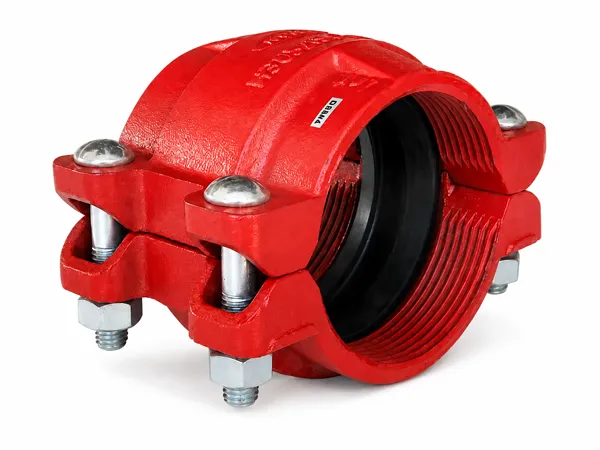

Rigid coupling on white background
Technical Data
Table 1: XGQT01
Nominal Size (mm / in) Pipe O.D. (mm / in) Working Pressure (PSI / MPa) Bolt Size No.-Size (mm) φ (mm / in) L (mm / in) H (mm / in) UL FM
25
1
33.7
1.327
500
3.45
2 - M10 × 45 57.5
2.264
99
3.898
43.5
1.713
UL FM
32
1-1/4
42.4
1.669
500
3.45
2 - M10 × 45 70
2.756
106
4.173
44
1.732
UL FM
40
1-1/2
48.3
1.900
500
3.45
2 - M10 × 45 73
2.874
108
4.252
44
1.732
UL FM
50
2
60.3
2.375
500
3.45
2 - M10 × 55 87
3.425
123
4.843
44
1.732
UL FM
65
2-1/2
73.0
2.875
500
3.45
2 - M10 × 55 100
3.937
138
5.433
44
1.732
UL FM
65
2-1/2
76.1
3.000
500
3.45
2 - M10 × 55 103
4.055
142
5.591
45
1.772
UL FM
80
3
88.9
3.500
500
3.45
2 - M12 × 60 117
4.606
166
6.535
45
1.772
UL FM
100
4
108.0
4.250
500
3.45
2 - M12 × 65 137
5.393
188
7.401
48
1.889
UL FM
100
4
114.3
4.500
500
3.45
2 - M12 × 65 139
5.472
190
7.480
49
1.929
UL FM
125
5
133.0
5.250
300
2.07
2 - M12 × 75 162.6
6.401
216
8.504
48
1.889
UL FM
125
5
139.7
5.500
400
2.75
2 - M12 × 75 168
6.614
218
8.583
49
1.929
UL FM
125
5
141.3
5.563
400
2.75
2 - M12 × 75 167
6.575
219
8.622
49
1.929
UL FM
150
6
159.0
6.250
300
2.07
2 - M12 × 75 189.4
7.456
240
9.448
48
1.889
UL FM
150
6
165.1
6.500
400
2.75
2 - M12 × 75 193
7.598
241
9.488
49
1.929
UL FM
150
6
168.3
6.625
400
2.75
2 - M12 × 75 198.5
7.815
249
9.803
50
1.969
UL FM
200
8
219.1
8.625
300
2.07
2 - M16 × 85 253
9.961
320
12.598
59
2.323
UL FM
250
10
273
10.748
300
2.07
2 - M22 × 130 335
13.189
426
16.772
68
2.677
UL FM
300
12
323.9
12.752
300
2.07
2 - M22 × 130 380
14.96
470
18.504
65
2.559
UL FM
Table 2: XGQT01P
Nominal Size (mm / in) Pipe O.D. (mm / in) Working Pressure (PSI / MPa) Bolt Size No.-Size (mm) φ (mm / in) L (mm / in) H (mm / in) UL FM
125
5
139.7
5.500
500
3.45
2 - M16 × 85 169.5
6.673
229
9.016
52
2.047
UL FM
125
5
141.3
5.563
500
3.45
2 - M16 × 85 170.5
6.713
232
9.134
52
2.047
UL FM
150
6
165.1
6.50
500
3.45
2 - M16 × 85 195
7.677
256
10.079
52
2.047
UL FM
150
6
168.3
6.625
500
3.45
2 - M16 × 85 202.5
7.972
263.5
10.374
52
2.047
UL FM
200
8
219.1
8.625
500
3.45
2 - M20 × 120 256.5
10.098
336
13.228
62
2.441
UL FM
250
10
273.0
10.750
500
3.45
2 - M24 × 130 326
12.835
410
16.142
65
2.441
UL FM
300
12
323.9
12.750
500
3.45
2 - M24 × 130 384
15.118
472
18.583
66
2.598
UL FM
XGQT02/XGQT02P Flexible Coupling
Product Description
  • Type: Grooved flexible coupling made of ductile cast iron.
  • Applicable Pipes: Applicable for Schedule 10, Schedule 30, Schedule 40, GB/T 3091, and WGalweld 7 standard pipes.
  • Specification: 25 mm to 400 mm (1 inch to 16 inches).
  • Certification Standard: Rated pressure meets UL and FM certification standards.
  • XGQT02 Feature: Standard grooved flexible coupling.
  • XGQT02P Feature: Uses enhanced spray corrosion-resistant treatment, suitable for underground, outdoor, coastal, and corrosive environments.

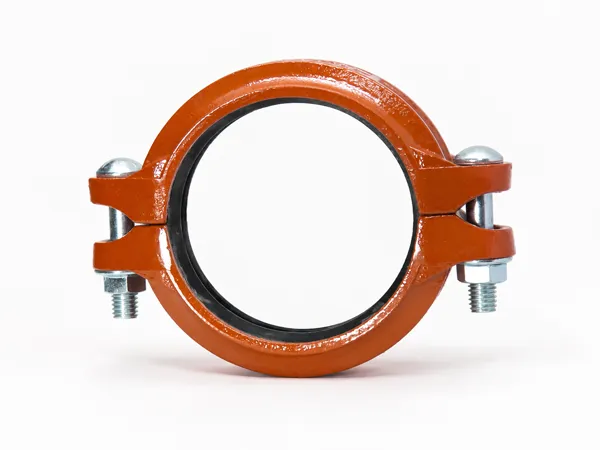

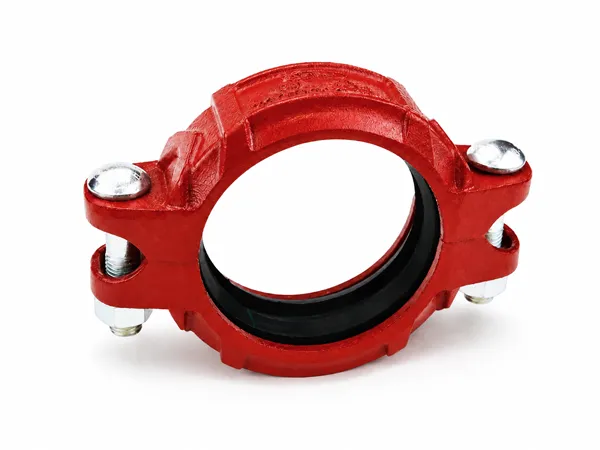

Flexible coupling on white background
Technical Data
Table 3: XGQT02
Nominal Size (mm / in) Pipe O.D. (mm / in) Working Pressure (PSI / MPa) Bolt Size No.-Size (mm) φ (mm / in) L (mm / in) H (mm / in) UL FM
25
1
33.7
1.327
500
3.45
2 - M10 × 45 60
2.362
98
3.858
43.5
1.713
UL FM
32
1-1/4
42.4
1.669
500
3.45
2 - M10 × 45 67
2.638
106
4.173
44
1.732
UL FM
40
1-1/2
48.3
1.900
500
3.45
2 - M10 × 45 73
2.874
108
4.252
44
1.732
UL FM
50
2
60.3
2.375
500
3.45
2 - M10 × 55 87
3.425
123
4.843
44
1.732
UL FM
65
2-1/2
73.0
2.875
500
3.45
2 - M10 × 55 100
3.937
138
5.433
44
1.732
UL FM
65
2-1/2
76.1
3.000
500
3.45
2 - M10 × 55 103
4.055
142
5.591
45
1.772
UL FM
80
3
88.9
3.500
500
3.45
2 - M12 × 60 117
4.606
166
6.535
45
1.772
UL FM
100
4
108.0
4.250
500
3.45
2 - M12 × 65 137
5.393
188
7.401
48
1.889
UL FM
100
4
114.3
4.500
500
3.45
2 - M12 × 65 139
5.472
190
7.480
49
1.929
UL FM
125
5
133.0
5.250
300
2.07
2 - M12 × 75 162.6
6.401
216
8.504
48
1.889
UL FM
125
5
139.7
5.500
400
2.75
2 - M12 × 75 168
6.614
218
8.583
49
1.929
UL FM
125
5
141.3
5.563
400
2.75
2 - M12 × 75 167
6.575
219
8.622
49
1.929
UL FM
150
6
159.0
6.250
300
2.75
2 - M12 × 75 189.4
7.456
240
9.448
48
1.889
UL FM
150
6
165.1
6.500
400
2.07
2 - M12 × 75 193
7.598
241
9.488
49
1.929
UL FM
150
6
168.3
6.625
400
2.75
2 - M12 × 75 198.5
7.815
249
9.803
50
1.969
UL FM
200
8
219.1
8.625
300
2.07
2 - M16 × 85 253
9.961
320
12.598
59
2.323
UL FM
250
10
273
10.748
300
2.07
2 - M22 × 130 317
12.48
401
10.787
63
2.48
UL FM
300
12
323.9
12.752
300
2.07
2 - M22 × 130 375
14.764
455
17.913
64
2.52
UL FM
Table 4: XGQT02P
Nominal Size (mm / in) Pipe O.D. (mm / in) Working Pressure (PSI / MPa) Bolt Size No.-Size (mm) φ (mm / in) L (mm / in) H (mm / in) UL FM
125
5
139.7
5.500
500
3.45
2 - M16 × 85 169.5
6.673
229
9.016
52
2.047
UL FM
125
5
141.3
5.563
500
3.45
2 - M16 × 85 170.5
6.713
232
9.134
52
2.047
UL FM
150
6
165.1
6.50
500
3.45
2 - M16 × 85 195
7.677
256
10.079
52
2.047
UL FM
150
6
168.3
6.625
500
3.45
2 - M16 × 85 202.5
7.972
263.5
10.374
52
2.047
UL FM
200
8
219.1
8.625
500
3.45
2 - M20 × 120 256.5
10.098
336
13.228
62
2.441
UL FM
250
10
273.0
10.750
500
3.45
2 - M24 × 130 326
12.835
410
16.142
65
2.441
UL FM
300
12
323.9
12.750
500
3.45
2 - M24 × 130 384
15.118
472
18.583
66
2.598
UL FM
XGQT02B Coupling Reducing Flexible
Product Description
  • Type: Ductile cast iron grooved flexible reducing coupling.
  • Applicable Pipes: Suitable for Schedule 10, Schedule 40, and GB/T 3091 standard pipes.
  • Specification Size: 50 mm to 200 mm (2 inches to 8 inches).
  • Certification Standard: Pressure rating meets UL and FM certification standards.
  • Feature: A flexible coupling that can directly connect two grooved pipes of different diameters, used to replace the combination of a reducer plus two ordinary couplings.
  • Typical Installation Locations: Firefighting main pipe reducer; sprinkler branch connection; pump room piping.

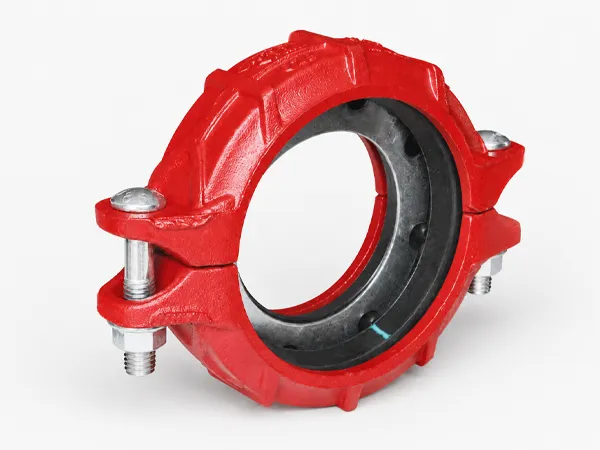

Coupling reducing flexible on white background
Technical Data
Table 5: XGQT02B
Nominal Size (mm / in) Pipe O.D. (mm / in) Working Pressure (PSI / MPa) Bolt Size No.-Size (mm) φ (mm / in) L (mm / in) H (mm / in) UL FM
40 x 32
1-1/2 x 1-1/4
48.3 x 42.4
1.900 x 1.669
300
2.07
2 - M10 × 45 73.6
2.899
111
4.37
44
1.732
UL FM
50 x 40
2 x 1-1/2
60.3 x 48.3
2.375 x 1.900
300
2.07
2 - M10 × 55 90
3.543
129
5.079
47
1.850
UL FM
65 x 40
2-1/2 x 1-1/2
73.0 x 48.3
2.874 x 1.900
300
2.07
2 - M10 × 55 101
3.976
137
5.394
48
1.890
UL FM
65 x 50
2-1/2 x 2
73.0 x 60.3
2.874 x 2.375
300
2.07
2 - M10 × 55 101
3.976
137
5.394
48
1.890
UL FM
65 x 40
2-1/2 x 1-1/2
76.1 x 48.3
2.996 x 1.900
300
2.07
2 - M10 × 55 105
4.134
140
5.512
48
1.890
UL FM
65 x 50
2-1/2 x 2
76.1 x 60.3
2.996 x 2.375
300
2.07
2 - M10 × 55 105
4.134
140
5.512
48
1.890
UL FM
65 x 65
2-1/2 x 2-1/2
76.1 x 73.0
2.996 x 2.874
300
2.07
2 - M10 × 55 100.4
3.953
141
5.551
47
1.85
UL FM
80 x 40
3 x 1-1/2
88.9 x 48.3
3.500 x 1.900
300
2.07
2 - M12 × 65 120
4.724
164
6.457
48
1.890
UL FM
80 x 50
3 x 2
88.9 x 60.3
3.500 x 2.375
300
2.07
2 - M12 × 65 120
4.724
164
6.457
48
1.890
UL FM
80 x 65
3 x 2-1/2
88.9 x 73.0
3.500 x 2.874
300
2.07
2 - M12 × 65 120
4.724
164
6.457
48
1.890
UL FM
80 x 65
3 x 2-1/2
88.9 x 76.1
3.500 x 2.996
300
2.07
2 - M12 × 65 120
4.724
164
6.457
48
1.890
UL FM
100 x 40
4 x 1-1/2
114.3 x 48.3
4.500 x 1.900
300
2.07
2 - M12 × 65 150
5.906
195
7.677
49
1.929
UL FM
100 x 50
4 x 2
114.3 x 60.3
4.500 x 2.375
300
2.07
2 - M12 × 65 150
5.906
195
7.677
49
1.929
UL FM
100 x 65
4 x 2-1/2
114.3 x 73
4.500 x 2.874
300
2.07
2 - M12 × 65 150
5.906
195
7.677
49
1.929
UL FM
100 x 65
4 x 2-1/2
114.3 x 76.1
4.500 x 2.996
300
2.07
2 - M12 × 65 150
5.906
195
7.677
49
1.929
UL FM
100 x 80
4 x 3
114.3 x 88.9
4.500 x 3.500
300
2.07
2 - M12 × 65 150
5.906
195
7.677
49
1.929
UL FM
150 x 100
6 x 4
165.1 x 114.3
6.500 x 4.500
300
2.07
2 - M12 × 75 203
7.992
235
9.252
50
1.969
150 x 80
6 x 3
168.3 x 88.9
6.625 x 3.500
300
2.07
2 - M12 × 75 203
7.992
235
9.252
50
1.969
UL FM
150 x 100
6 x 4
168.3 x 114.3
6.625 x 4.500
300
2.07
2 - M12 × 75 203
7.992
235
9.252
50
1.969
UL FM
200 x 150
8 x 6
219.1 x 168.3
8.625 x 6.625
300
2.07
2 - M16 × 110 264
10.394
313
12.323
60
2.362
UL FM
XGQT02D Deep Grooved Flexible Coupling
Product Description
  • Type: Ductile cast iron deep grooved flexible coupling.
  • Size Specifications: 200 mm to 500 mm.
  • Certification Standard: UL certification.
  • Feature: Designed for deep groove processed pipes to improve compatibility and connection reliability between the coupling and groove.
  • Typical Installation Locations: Firefighting main pipe, sprinkler system, pump room connections.
Deep grooved flexible coupling on white background
Technical Data
Table 6: XGQT02D
Nominal Size (mm / in) Pipe O.D. (mm / in) Working Pressure (PSI / MPa) Bolt Size No.-Size (mm) φ (mm / in) L (mm / in) H (mm / in) UL FM
200
8
216.3
8.516
250
1.72
2 - M20 × 120 251.8
9.913
328
12.913
63
2.480
UL
250
10
267.4
10.528
250
1.72
2 - M20 × 120 309.6
12.189
387
15.236
64.5
2.539
UL
300
12
318.5
12.539
300
2.07
2 - M22 × 165 361.4
14.228
448
17.638
64.5
2.539
UL
350
14
355.6
14.00
300
2.07
3 - M22 × 100 411
16.181
458
18.031
75
2.953
UL
400
16
406.4
16.00
300
2.07
3 - M22 × 100 461
18.15
508
20.00
75
2.953
UL
450
18
457.2
18.00
250
1.72
3 - M24 × 130 515
20.276
567
22.323
79
3.228
UL
500
20
508
20.00
250
1.72
4 - M24 × 130 562
22.126
666
26.22
78.5
3.091
UL
XGQT02H Heavy-duty Flexible Coupling
Product Description
  • Type: Ductile cast iron reinforced grooved flexible coupling.
  • Size Range: 350 mm to 600 mm.
  • Certification Standard: UL certification.
  • Features: A reinforced grooved flexible coupling that improves shell strength, locking capacity, and pressure reliability based on the standard XGQT02, while retaining flexible connection characteristics that absorb pipeline displacement, vibration, and thermal stress. Mainly used in large diameter, high pressure, and strong vibration firefighting and industrial pipeline systems.
  • Typical Installation Locations: Fire pump room outlet; main firefighting ring pipe; large diameter firefighting main pipe.
  • Reasons: High pressure; obvious water hammer; need for reliable connection.
Heavy-duty flexible coupling on white background
Technical Data
Table 7: XGQT02H
Nominal Size (mm / in) Pipe O.D. (mm / in) Working Pressure (PSI / MPa) Bolt Size No.-Size (mm) φ (mm / in) L (mm / in) H (mm / in) UL FM
350
14
355.6
14.00
300
2.07
3 - M22 × 100 406
15.984
454
17.874
75
2.953
UL
400
16
406.4
16.00
250
1.72
3 - M22 × 100 458
18.031
507
19.961
75
2.953
UL
450
18
457.2
18.00
250
1.72
3 - M22 × 100 507
19.961
535
21.063
82
3.228
UL
500
20
508
20.00
250
1.72
4 - M24 × 130 564
22.205
663
26.102
79
3.11
UL
600
24
609.6
24
250
1.72
4 - M24 × 130 672
26.457
774
30.472
79
3.11
UL
XGQT02K Flexible Coupling
Product Description
  • Type: Ductile cast iron flexible grooved coupling.
  • Specification Size: 60.3 mm to 323.9 mm.
  • Certification Standards: FM and UL.
  • Features: The XGQT02K has a reinforced housing structure and bolt connections, improving pressure capacity and connection reliability. Compared to the standard XGQT02, it is better suited for high pressure, large diameter, or firefighting and industrial pipeline systems with higher connection safety requirements. Compared to XGQT02H, it leans more toward special structural optimization rather than purely heavy-duty design.
  • Typical Installation Locations: Firefighting main pipe; fire pump room; firefighting pipe network in high-rise buildings.
  • Application Conditions: High pressure; large diameter; special pipeline connection conditions.
Flexible coupling on white background
Technical Data
Table 8: XGQT02K
Pipe O.D. (mm / in) Working Pressure (PSI / MPa) Bolt Size No.-Size (mm) φ (mm / in) L (mm / in) H (mm / in) UL FM
60.3
2.375
500
3.45
2 - M12 × 60 87
3.425
132
5.197
45.5
1.791
UL FM
73
2.875
500
3.45
2 - M12 × 65 103
4.055
147.5
5.807
46
1.811
76.1
3.000
500
3.45
2 - M12 × 65 105.5
4.153
149.5
5.886
46
1.811
88.9
3.500
500
3.45
2 - M12 × 75 117
4.606
161
6.339
46
1.811
UL FM
114.3
4.500
500
3.45
2 - M16 × 85 145
5.709
203
7.992
51
2.008
UL FM
139.7
5.500
500
3.45
2 - M16 × 85 173
6.811
230
9.055
51
2.008
159.0
6.250
500
3.45
2 - M16 × 85 193
7.598
246
9.685
50
1.968
165.1
6.50
500
3.45
2 - M16 × 85 199
7.835
262
10.315
52
2.047
168.3
6.625
500
3.45
2 - M20 × 120 205.5
8.090
270
10.630
54
2.126
UL FM
216.3
8.516
400
2.76
2 - M22 × 130 258
10.157
335
13.189
63
2.480
219.1
8.625
400
2.76
2 - M22 × 130 270.5
10.650
355
13.976
64
2.520
UL FM
267.4
10.527
400
2.76
2 - M24 × 165 320.5
12.618
401
15.787
64
2.520
273.0
10.750
400
2.76
2 - M24 × 165 329.5
12.972
417
16.417
66
2.598
UL FM
318.5
12.539
400
2.76
2 - M24 × 165 375.8
14.795
465
18.307
64
2.520
323.9
12.750
400
2.76
2 - M24 × 165 383
15.079
462
18.189
67
2.638
UL FM
XGQT31 Rigid Coupling
Product Description
  • Type: Ductile cast iron grooved rigid coupling.
  • Applicable Pipes: Specifically designed for Schedule 5, Schedule 10, Schedule 40, GB/T 3091, JIS G3452, WGalweld 5, and WGalweld 7 pipe specifications.
  • Specifications: 25 mm to 300 mm (1 inch to 12 inches).
  • Certification Standards: Rated pressure complies with UL and FM certification standards.
  • Features: Mainly designed for thin-walled pipes such as Schedule 5, Schedule 7, and Schedule 40, and has obtained FM and UL certifications. The main difference from the standard XGQT01 lies in the applicable pipe specifications and certification scope.
  • Typical Application Locations: Firefighting sprinkler main pipe, firefighting riser, firefighting ring pipe, fixed pipe sections in the pump room.
Rigid coupling on white background
Technical Data
Table 9: XGQT31
Nominal Size (mm / in) Pipe O.D. (mm / in) Working Pressure (PSI / MPa) Bolt Size No.-Size (mm) φ (mm / in) L (mm / in) H (mm / in) UL FM
25
1
33.7
1.327
500
3.45
2 - M10 × 45 58
2.283
101
3.976
44
1.732
UL FM
32
1-1/4
42.4
1.669
500
3.45
2 - M10 × 45 67
2.638
107
4.213
44
1.732
UL FM
40
1-1/2
48.3
1.900
500
3.45
2 - M10 × 45 72
2.835
111
4.370
44
1.732
UL FM
50
2
60.3
2.375
500
3.45
2 - M10 × 55 85
3.346
125
4.921
44
1.732
UL FM
65
2-1/2
73.0
2.875
500
3.45
2 - M10 × 55 99
3.898
139
5.472
45
1.772
UL FM
65
2-1/2
76.1
3.000
500
3.45
2 - M10 × 55 102
4.016
143
5.630
45
1.772
UL FM
80
3
88.9
3.500
500
3.45
2 - M12 × 60 116
4.567
166
6.535
45
1.772
UL FM
100
4
108.0
4.250
500
3.45
2 - M12 × 65 138
5.433
188
7.401
48
1.890
UL FM
100
4
114.3
4.500
500
3.45
2 - M12 × 65 141
5.551
191
7.520
49
1.929
UL FM
125
5
133.0
5.250
300
2.07
2 - M12 × 75 164
6.457
214
8.425
48
1.890
UL FM
125
5
139.7
5.500
300
2.07
2 - M12 × 75 167
6.575
219
8.622
49
1.929
UL FM
125
5
141.3
5.563
300
2.07
2 - M12 × 75 167
6.575
219
8.622
49
1.929
UL FM
150
6
159.0
6.250
300
2.07
2 - M12 × 75 190
7.480
242
9.528
49
1.929
UL FM
150
6
165.1
6.500
300
2.07
2 - M12 × 75 192
7.559
246
9.685
50
1.969
UL FM
150
6
168.3
6.625
300
2.07
2 - M12 × 75 200
7.874
251
9.882
49
1.929
UL FM
200
8
216.3
8.504
300
2.07
2 - M16 × 85 250
9.843
317
12.480
59
2.323
UL FM
200
8
219.1
8.625
300
2.07
2 - M16 × 85 253
9.961
320
12.598
59
2.323
UL FM
250
10
273.0
10.748
300
2.07
2 - M22 × 130 335
13.189
426
16.772
68
2.677
UL FM
300
12
323.9
12.752
300
2.07
2 - M22 × 130 380
14.96
470
18.504
65
2.559
UL FM
XGQT31A Angle Pad Coupling
Product Description
  • Type: Ductile cast iron angle pad rigid grooved coupling.
  • Size Range: 25 mm to 300 mm.
  • Certification Standards: UL certification and FM certification.
  • Features: Utilizes angle pad structure optimization, a high-performance rigid grooved coupling with bolt loading, offering more uniform locking force and higher connection reliability, mainly used in firefighting, HVAC, and industrial high-demand pipeline systems. Primarily addresses uniform force distribution in connections.
  • Application Locations: Mainly used in positions within firefighting water supply systems that bear relatively large mechanical loads, such as fire pump outlets, large diameter main pipes, the bottom of high-rise risers, valve connections, and areas with high anti-seismic requirements.
Angle pad coupling on white background
Technical Data
Table 10: XGQT31A
Nominal Size (mm / in) Pipe O.D. (mm / in) Working Pressure (PSI / MPa) Bolt Size No.-Size (mm) φ (mm / in) L (mm / in) H (mm / in) UL FM
25
1
33.7
1.327
300
2.07
2 - M10 × 45 57.4
2.260
98
3.858
47
1.85
UL
32
1-1/4
42.4
1.669
300
2.07
2 - M10 × 55 65
2.559
106
4.173
47
1.85
UL FM
40
1-1/2
48.3
1.900
300
2.07
2 - M10 × 55 70.5
2.776
111
4.37
47
1.85
UL FM
50
2
60.3
2.375
300
2.07
2 - M10 × 60 85
3.346
123.5
4.862
47
1.85
UL FM
65
2-1/2
73.0
2.875
300
2.07
2 - M10 × 60 99
3.900
137.5
5.413
47
1.85
UL FM
65
2-1/2
76.1
3.000
300
2.07
2 - M10 × 60 102
4.016
141.5
5.571
47
1.85
UL FM
80
3
88.9
3.500
300
2.07
2 - M12 × 65 117
4.606
164.5
6.476
47.5
1.87
UL FM
100
4
108
4.250
300
2.07
2 - M12 × 70 138.5
5.453
186
7.323
52
2.047
UL FM
100
4
114.3
4.500
300
2.07
2 - M12 × 70 140.5
5.531
188
7.402
52
2.047
UL FM
125
5
139.7
5.500
300
2.07
2 - M12 × 75 167.5
6.595
219
8.622
52
2.047
UL FM
125
5
141.3
5.563
300
2.07
2 - M12 × 75 167.5
6.595
219
8.622
52
2.047
UL FM
150
6
159.0
6.250
300
2.07
2 - M12 × 75 190
7.480
240
9.449
52.5
2.067
UL FM
150
6
165.1
6.500
300
2.07
2 - M12 × 75 193
7.598
243
9.567
52.5
2.067
UL FM
150
6
168.3
6.625
300
2.07
2 - M12 × 75 200
7.874
249
9.803
52.5
2.067
UL FM
200
8
216.3
8.516
300
2.07
2 - M16 × 110 251
9.882
312
12.283
64
2.52
UL FM
200
8
219.1
8.625
300
2.07
2 - M16 × 110 251
9.882
320
12.598
64
2.52
UL FM
250
10
267.0
10.512
300
2.07
2 - M22 × 155 307
12.087
392
15.433
66
2.60
UL FM
250
10
273.0
10.748
300
2.07
2 - M22 × 155 316
12.441
400
15.748
66
2.60
UL FM
300
12
323.9
12.752
300
2.07
2 - M24 × 165 376.5
14.823
464
18.268
66
2.60
UL FM
XGQT32 Flexible Coupling
Product Description
  • Type: Ductile cast iron grooved flexible coupling.
  • Applicable Pipes: Specifically designed for Schedule 5, Schedule 10, Schedule 40, GB/T 3091, JIS G3452, WGalweld 5, and WGalweld 7 pipe specifications.
  • Size Range: 25 mm to 300 mm (1 inch to 12 inches).
  • Certification Standards: Rated pressure complies with UL and FM certification standards.
  • Features: Primarily optimized for thin-wall pipes of Schedule 5, Schedule 7, and Schedule 40, and has obtained FM certification and UL certification.
  • Typical Installation Locations: Sprinkler main pipe; firefighting ring pipe; riser connection; near pump room.
Flexible coupling on white background
Technical Data
Table 11: XGQT32
Nominal Size (mm / in) Pipe O.D. (mm / in) Working Pressure (PSI / MPa) Bolt Size No.-Size (mm) φ (mm / in) L (mm / in) H (mm / in) UL FM
25
1
33.7
1.327
500
3.45
2 - M10 × 45 58
2.283
100
3.937
44
1.732
UL FM
32
1-1/4
42.4
1.669
500
3.45
2 - M10 × 45 67
2.638
107
4.213
44
1.732
UL FM
40
1-1/2
48.3
1.900
500
3.45
2 - M10 × 45 72
2.835
111
4.370
44
1.732
UL FM
50
2
60.3
2.375
500
3.45
2 - M10 × 55 85
3.346
124
4.882
44
1.732
UL FM
65
2-1/2
73.0
2.875
500
3.45
2 - M10 × 55 99
3.898
138
5.433
45
1.772
UL FM
65
2-1/2
76.1
3.000
500
3.45
2 - M10 × 55 102
4.016
142
5.591
45
1.772
UL FM
80
3
88.9
3.500
500
3.45
2 - M12 × 60 116
4.567
165
6.496
45
1.772
UL FM
100
4
108.0
4.250
500
3.45
2 - M12 × 65 138
5.433
187
7.362
48
1.890
UL FM
100
4
114.3
4.500
500
3.45
2 - M12 × 65 141
5.551
190
7.480
49
1.929
UL FM
125
5
133.0
5.250
300
2.07
2 - M12 × 75 164
6.457
213
8.386
48
1.890
UL FM
125
5
139.7
5.500
300
2.07
2 - M12 × 75 167
6.575
218
8.583
49
1.929
UL FM
125
5
141.3
5.563
300
2.07
2 - M12 × 75 167
6.575
219
8.622
49
1.929
UL FM
150
6
159.0
6.250
300
2.07
2 - M12 × 75 190
7.480
240
9.449
49
1.929
UL FM
150
6
165.1
6.500
300
2.07
2 - M12 × 75 192
7.559
245
9.646
50
1.969
UL FM
150
6
168.3
6.625
300
2.07
2 - M12 × 75 200
7.874
250
9.843
49
1.929
UL FM
200
8
216.3
8.504
300
2.07
2 - M16 × 85 250
9.843
316
12.441
59
2.323
UL FM
200
8
219.1
8.625
300
2.07
2 - M16 × 85 253
9.961
319
12.559
59
2.323
UL FM
250
10
267.4
10.512
300
2.07
2 - M20 × 120 307
12.087
388
15.276
65
2.559
UL FM
250
10
273.0
10.748
300
2.07
2 - M22 × 130 317
12.48
401
15.787
63
2.48
UL FM
300
12
318.5
12.520
300
2.07
2 - M22 × 130 360
14.173
450
17.717
65
2.559
UL FM
300
12
323.9
12.752
300
2.07
2 - M22 × 130 375
14.764
455
17.913
64
2.52
UL FM
XGQT35 Quick Rigid Coupling
Product Description
  • Type: Ductile cast iron quick connect rigid coupling.
  • Size Range: 50 mm to 150 mm.
  • Certification Standard: UL certification obtained.
  • Uniqueness: A rigid grooved connector optimized for installation efficiency, featuring an ultra-fast locking structure to reduce installation time. Compared to the XGQT01, it is more suitable for large-scale firefighting projects, industrial pipelines, and projects with higher construction efficiency requirements.
  • Typical Installation Locations: Firefighting main pipe; sprinkler network; firefighting riser.
Quick rigid coupling on white background
Technical Data
Table 12: XGQT35
Nominal Size (mm / in) Pipe O.D. (mm / in) Working Pressure (PSI / MPa) Bolt Size No.-Size (mm) φ (mm / in) L (mm / in) H (mm / in) UL FM
50
2
60.3
2.375
400
2.75
2 - M10 × 65 85.5
3.366
148
5.827
54
2.126
UL
65
2-1/2
73.0
2.875
400
2.75
2 - M10 × 65 99
3.898
160.5
6.319
54
2.126
UL
65
2-1/2
76.1
3.000
400
2.75
2 - M10 × 65 101.5
3.996
163.5
6.437
54
2.126
UL
80
3
88.9
3.500
400
2.75
2 - M12 × 70 115
4.528
184
7.244
54
2.126
UL
100
4
114.3
4.500
300
2.07
2 - M12 × 80 140
5.512
212
8.346
58
2.283
UL
125
5
139.7
5.500
300
2.07
2 - M12 × 80 166
6.535
240
9.449
58
2.283
UL
125
5
141.3
5.563
300
2.07
2 - M12 × 80 167.5
6.594
242
9.528
58
2.283
UL
150
6
165.1
6.500
300
2.07
2 - M12 × 80 192
7.559
264.5
10.413
58
2.283
UL
150
6
168.3
6.625
300
2.07
2 - M12 × 80 195.5
7.697
270
10.63
58
2.283
UL
101T Rigid Coupling
Product Description
  • Type: Ductile cast iron rigid grooved coupling.
  • Size Range: 25 mm to 150 mm.
  • Certification Standards: UL certification and FM certification.
  • Features: The core selling points of 101T are recommended to be labeled as single bolt design + fast installation + rigid connection.
  • Typical Installation Locations: Branch connection; sprinkler pipe; small diameter firefighting pipe.
Rigid coupling on white background
Technical Data
Table 13: 101T
Nominal Size (mm / in) Pipe O.D. (mm / in) Working Pressure (PSI / MPa) Bolt Size No.-Size (mm) Torque Value (N·M) φ (mm) L (mm) H (mm) UL FM
25
1
33.7
1.32
450
3.1
M10 × 55 90±10 57.3 98.6 47.6 UL FM
32
1-1/4
42.4
1.67
450
3.1
M10 × 60 90±10 64 107.5 47.5 UL FM
40
1-1/2
48.3
1.9
450
3.1
M10 × 60 90±10 70 114 47.5 UL FM
50
2
60.3
2.37
365
2.5
M10 × 65 90±10 84 128 48 UL FM
65
2-1/2
73
2.87
365
2.5
M10 × 70 100±10 96.4 140.3 48 UL FM
65
2-1/2
76.1
3.0
365
2.5
M10 × 70 100±10 99.5 143.5 48 UL FM
80
3
88.9
3.5
365
2.5
M12 × 80 100±10 113.5 168 48 UL FM
100
4
108
4.25
365
2.5
M12 × 80 120±10 133 187.5 50 UL FM
100
4
114.3
4.5
365
2.5
M12 × 80 120±10 143 194 50 UL FM
125
5
133
5.24
365
2.5
M12 × 85 150±10 165.5 221 50 UL FM
125
5
139.7
5.5
365
2.5
M12 × 85 150±10 172 228 50 UL FM
125
5
141.3
5.56
365
2.5
M12 × 85 150±10 173.7 229.5 50 UL FM
150
6
159
6.26
365
2.5
M12 × 90 150±10 190 251 51 UL FM
150
6
165.1
6.5
365
2.5
M12 × 90 150±10 198 256 51 UL FM
150
6
168.3
6.63
365
2.5
M12 × 90 150±10 201 259 51 UL FM
H305 HDPE Coupling
Product Description
  • Type: HDPE pipe connection coupling.
  • Size Specifications: 50 mm to 300 mm.
  • Features: H305 is specially designed for trenchless mechanical connections of HDPE (high density polyethylene) pipes. The metal tooth structure inside the housing engages the HDPE pipe outer wall, while the rubber sealing ring ensures reliable sealing. H305 is not a grooved steel pipe coupling but a mechanical connection coupling dedicated to HDPE plastic pipes.
  • Typical Installation Locations: Underground firefighting pipe; outdoor firefighting pipeline network.
HDPE coupling on white background
Technical Data
Table 14: H305
Nominal Size (mm / in) Pipe O.D. (mm / in) Working Pressure (PSI / MPa) Bolt Size No.-Size (mm) φ (mm / in) L (mm / in) H (mm / in)
50
2
60.3
2.375
300
2.07
4 - M12 × 60 83
3.268
120
4.724
116
4.567
63
2.48
300
2.07
4 - M10 × 60 89
3.504
116
4.567
105
4.134
80
3
88.9
3.5
300
2.07
4 - M12 × 75 114.5
4.5
166
6.535
118
4.647
110
4.33
300
2.07
4 - M12 × 75 137
5.394
180
7.087
110
4.331
100
4
114.5
4.5
300
2.07
4 - M12 × 75 143
5.63
201
7.913
147
5.787
161
6.339
300
2.07
4 - M12 × 75 188
7.402
235
9.252
118
4.646
150
6
168.3
6.626
300
2.07
4 - M16 × 85 202
7.953
252
9.921
150
5.906
200
7.874
300
2.07
4 - M16 × 85 238.2
9.378
309
12.165
127
5.00
200
8
219.1
8.626
300
2.07
4 - M16 × 85 258
10.157
320
12.598
152
5.984
252
9.921
300
2.07
4 - M16 × 100 288
11.339
350
13.780
141
5.551
250
10
273
10.748
300
2.07
4 - M20 × 100 313
12.323
390
15.354
165
6.496
300
12
323.9
10.748
300
2.07
4 - M20 × 120 367
14.449
455
17.913
183
7.205
H307 Transition HDPE Coupling
Product Description
  • Type: Transition HDPE coupling.
  • Size Specifications: 50 mm to 300 mm.
  • Features: H307 is a transition-type mechanical connection coupling mainly used to achieve direct conversion connections between HDPE (high-density polyethylene) pipelines and grooved steel pipes. It solves the problem of the HDPE pipeline system being unable to connect directly with the traditional steel pipe grooved system.
  • Typical Installation Locations: Outdoor firefighting pipeline network; underground firefighting pipe. Used when connecting HDPE underground pipes with steel firefighting systems.
Transition HDPE coupling on white background
Technical Data
Table 15: H307
Nominal Size (mm / in) Pipe O.D. (mm / in) Working Pressure (PSI / MPa) Bolt Size No.-Size (mm) φ (mm / in) L (mm / in) H (mm / in)
50
2
60.3
2.375
300
2.07
4 - M12 × 60 84
3.07
146
5.748
78
3.071
80
3
88.9
3.5
300
2.07
4 - M12 × 75 112
4.409
174
6.85
79
3.11
110
4.33
300
2.07
4 - M12 × 75 137.6
5.417
192
7.559
80
3.150
100
4
114.5
4.5
300
2.07
4 - M12 × 75 142
5.591
208
8.189
95
3.74
161
6.339
300
2.07
4 - M12 × 75 188
7.402
246
9.685
85
3.346
150
6
168.3
6.626
300
2.07
4 - M16 × 85 198
7.795
280
11.024
96
3.78
200
8
219.1
8.626
300
2.07
4 - M16 × 85 260
10.236
342
13.465
107
4.213
250
10
273
10.748
300
2.07
4 - M20 × 120 314
12.362
424
16.693
128
5.039
300
12
323.9
10.748
300
2.07
4 - M20 × 120 368
14.488
470
18.504
129
5.079
KRJ02 Shouldered Coupling
Product Description
  • Type: Ductile cast iron shouldered coupling.
  • Specifications: 40 mm to 350 mm.
  • Features: KRJ02 is a shouldered mechanical connection coupling that enables pipe connection through mechanical engagement between the pipe end shoulder and the shoulder groove inside the coupling. Compared with traditional grooved couplings, it does not rely on a grooving structure but uses shoulder bearing, featuring quick installation, easy disassembly, and strong load capacity. It is mainly used in mines, industrial transport, large-diameter pipelines, and other systems requiring fast maintenance.
  • Typical Application Locations: Certain projects may use it for large-diameter firefighting pipes; temporary firefighting pipelines.
Shouldered coupling on white background
Technical Data
Table 16: KRJ02
Nominal Size (mm / in) Pipe O.D. (mm / in) Working Pressure (PSI / MPa) Bolt Size No.-Size (mm) φ (mm / in) L (mm / in) H (mm / in)
40
1-1/2
48.3
1.900
500
3.45
2 - M10 × 55 81
3.189
117
4.606
47
1.85
50
2
60.3
2.375
500
3.45
2 - M12 × 60 97
3.957
132
5.197
48
1.89
65
2-1/2
76.1
3.000
500
3.45
2 - M12 × 65 108
4.252
153
6.024
46
1.811
80
3
88.9
3.500
500
3.45
2 - M12 × 75 125
4.921
170
6.692
48
1.89
100
4
114.3
4.500
500
3.45
2 - M12 × 75 157
6.181
205
8.070
52
2.047
125
5
139.7
5.500
500
3.45
2 - M16 × 85 184
7.244
241
9.488
52
2.047
150
6
165.1
6.500
500
3.45
2 - M16 × 85 213
8.386
272
10.708
52
2.047
200
8
219.1
8.625
500
3.45
2 - M20 × 100 278
10.945
345
13.583
60
2.362
250
10
273
10.748
500
3.45
2 - M22 × 130 341
13.425
416
16.338
64
2.52
273
10.748
500
3.45
2 - M24 × 130 344.5
13.563
432
17.008
65
2.559
300
12
323.9
12.752
500
3.45
2 - M24 × 130 391.5
15.413
484
19.055
65
2.559
350
14
355.6
14.000
500
3.45
3 - M22 × 100 428
16.85
504
19.84
75
2.95
XGQT02W Ring Joint Coupling
Product Description
  • Type: Ductile cast iron flexible grooved coupling.
  • Specification Size: 150 mm to 600 mm.
  • Features: XGQT02W is a specially structured flexible grooved coupling that achieves pipeline positioning and sealing connection through an annular joint structure. Compared to the ordinary XGQT02, it primarily optimizes the sealing method and connection stability, improving sealing reliability and pipeline adaptability while maintaining flexible connection capability. It is suitable for pipeline systems with high reliability requirements, such as firefighting, municipal water supply and drainage, and industrial water transportation.
  • Typical Installation Locations: Firefighting main pipe; pump room piping; outdoor firefighting ring pipe.
  • Advantages: Absorbs water hammer; reduces vibration impact.
Ring joint coupling on white background
Technical Data
Table 17: XGQT02W
Nominal Size (mm / in) Pipe O.D. (mm / in) Working Pressure (PSI / MPa) Allow Pipe End sep. H (mm) Deflection from CL Degree Deflection from CL mm / M Bolt Size No.-Size (mm) φ (mm / in) L (mm / in) H (mm / in) Sealing Size R (mm / in)
150
6
165.1
6.500
300
2.07
0-6.4 1.2° 0.2521 4 - 3/4 × 108 202
7.953
280
11.024
95
3.74
10
0.394
168.3
6.625
300
2.07
0-6.4 1.2° 0.2521 4 - 3/4 × 108 206
8.11
283
11.142
95
3.74
10
0.394
350
14
355.6
14.00
300
2.07
0-6.4 1.2° 0.2521 6 - M16 × 135 405
15.945
490
19.291
99
3.898
8
0.315
400
16
406.4
16.00
300
2.07
0-6.4 0.9° 0.1916 6 - M16 × 135 455
17.913
540
21.260
99
3.898
8
0.315
450
18
457.2
18.00
300
2.07
0-9.5 1.2° 0.2521 6 - M20 × 120 508
20.00
605
23.819
105
4.134
8
0.315
500
20
508
20.00
300
2.07
0-9.5 1.08° 0.2319 8 - M22 × 100 568
22.362
678
26.693
115
4.528
9.5
0.374
600
24
609.6
24.00
300
2.07
0-9.5 0.8° 0.1714 8 - M22 × 100 672
26.457
782
30.787
125
4.921
12.7
0.50
XGQT01H Heavy Duty Rigid Coupling
Product Description
  • Type: Ductile cast iron rigid grooved coupling.
  • Specification Sizes: 50 mm to 600 mm.
  • Certification Standard: UL certification.
  • Characteristics: The XGQT01H is a strengthened rigid grooved coupling, a heavy-duty version of the XGQT01, mainly used for high pressure, large diameter, and high safety requirement pipeline systems. This product enhances the housing structure and optimizes the grooved locking capability to improve connection load capacity and long-term reliability.
  • Typical Installation Locations: Firefighting main pipe; firefighting risers in high-rise buildings; fixed pipe sections in the fire pump room.
  • Suitable: UL/FM firefighting engineering; high pressure firefighting systems.
Heavy duty rigid coupling on white background
Technical Data
Table 18: XGQT01H
Nominal Size (mm / in) Pipe O.D. (mm / in) Working Pressure (PSI / MPa) Bolt Size No.-Size (mm) φ (mm / in) L (mm / in) H (mm / in) UL FM
50
2
60.3
2.375
500
3.45
2 - M10 × 55 88.6
3.488
129.5
5.098
46
1.811
UL
65
2-1/2
76.1
3.000
500
3.45
2 - M10 × 55 107.8
4.244
149
5.866
46
1.811
UL
80
3
88.9
3.500
500
3.45
2 - M12 × 75 120.8
4.756
171
6.732
46
1.811
UL
100
4
114.3
4.500
500
3.45
2 - M12 × 75 146
5.748
197
7.756
51
2.008
UL
125
5
139.7
5.500
450
3.1
2 - M16 × 100 174.8
6.882
234
9.213
51
2.008
UL
150
6
165.1
6.500
450
3.1
2 - M16 × 100 200.2
7.882
260.5
10.256
53
2.087
UL
200
8
216.3
8.516
300
2.07
2 - M20 × 120 261.4
10.291
333
13.11
63
2.480
UL
250
10
267.4
10.528
300
2.07
2 - M22 × 130 318.6
12.543
395
15.551
64
2.52
UL
300
12
318.5
12.539
300
2.07
2 - M22 × 165 371
14.606
451
17.756
64
2.52
UL
350
14
355.6
14.00
300
2.07
3 - M22 × 100 406
15.984
461
18.15
75
2.953
UL
400
16
406.4
16.00
300
2.07
3 - M22 × 100 458.6
18.055
513.8
20.228
75
2.953
UL
450
18
457.2
18.00
250
1.72
3 - M22 × 100 515
20.276
571
22.48
82
3.228
UL
500
20
508
20.00
250
1.72
4 - M24 × 130 565
22.244
690
27.165
79
3.11
UL
600
24
609.6
24.00
250
1.72
4 - M24 × 130 676
26.614
786.6
30.969
79
3.11
UL
Accessories

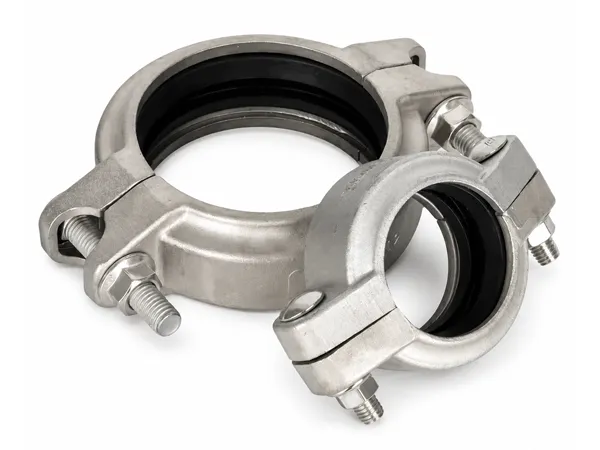

Casting

Made of high-quality ductile iron with strict control of chemical composition and mechanical properties.

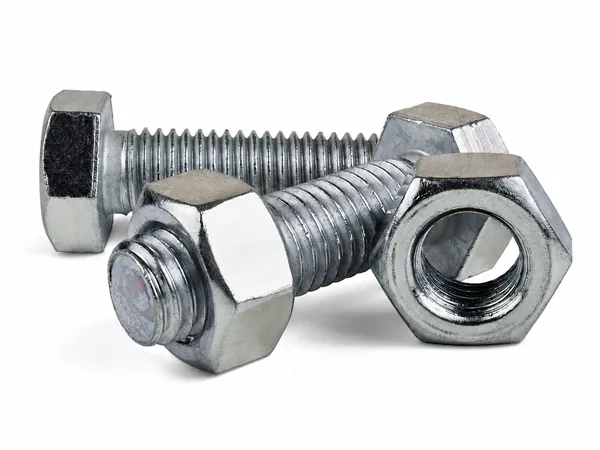

Bolts and Nuts

Manufactured from 35K or 10B21 steel, with mechanical properties meeting Grade 8.8 requirements.

Rubber Gasket

Available in EPDM, NBR, and Silicone materials to meet the requirements of different operating conditions.
Hot Selling Products

Carefully selected fire protection products to meet the needs of engineering projects.
